Simplified Weighing Machine Printer Digital Weight Checking System Equipment JZ-W100g DDP

Place of Origin : Guangdong, China

Machine material : SUS304

Power Supply : 220V

accuracy : +/-0.1 grams

sorting speed : 20bag/minutes

belt material : PU

HBM load cell : (original from Germany)

belt standard : FDA

Model Number : JZ-W100g

waterproof : IP66

MOQ : 1

display type : 10" color touch screen

Contact Now

Weighing Machine With Printer JZ-W100g DDP

Product Overview

The Check Weigher JZ-W100g is used to verify whether individual package weights conform to preset weight standards. The system automatically removes overweight and underweight products using various rejection devices, while qualified bags proceed to the next equipment.

Key Features

PLC and 10" color touch screen with intelligent compact design
Automatic program setting adjustment for enhanced stability and ease of operation
HBM load cell (original from Germany) ensures high accuracy and stability
Solid SUS304 structure provides stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easier cleaning
Emergency switch installation for user-friendly operation
Optional arm device for clear production situation display
Capable of recording up to 10 different product parameters

Technical Specifications

Model	JZ-W100g
Control System	10" color touch screen
Weighing Range	3-100 grams
Sorting Speed	60-80 bags/minute
Conveyor Speed	40 m/minute
Accuracy	±0.1 grams
Minimum Scale	0.01 grams
Weigh Belt	300L/400L * 130W mm
Conveyor Height	750mm ±50mm
Auto Rejector System	Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 Stainless Steel
Interface	Weight transmission to Ink-jet printer (requires customer protocol)
Packing Dimension	1450L * 400W * 1510H mm
Gross Weight	150kg

Optional Accessories

Network data management software
Front feeding FBC feedback control software
Printer
Lamp

Product Images

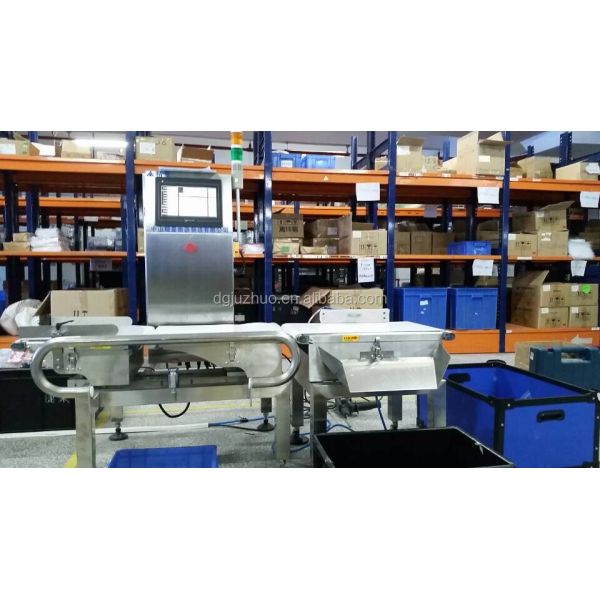

Simplified Weighing Machine Printer Digital Weight Checking System Equipment JZ-W100g DDP
