Worm Gear 4 Axis CNC Rotary Table

Name: Worm Gear 4 Axis CNC Rotary Table
Brand: Juzhuo
Price: 1 USD

Worm Gear 4 Axis CNC Rotary Table Manufactures

warranty : 3 Years

Repeatability accuracy : 4

video outgoing-inspection : Provided

total thickness : 390mm

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine

Place of Origin : Guangdong, China

Center height(mm) : 465

Dividing accuracy : 15

MOQ : 1

Center through hole : 135(F230)H6

Rotary Table Diameter : 800mm

Brand Name : Juzhuo

Worm gear ratio : 1to120

Total reduction ratio : 1to 360

machinery test report : Provided

weight (kg) : 1500

Locating key size (mm) : 22mm

T-slot size (mm) : 8-18H12

Contact Now

Worm Gear 4-Axis Rotary Table

The Model NC-800 Worm Gear 4-Axis Rotary Table features worm gear and worm wheel structures and is a rotational device used in machine tools.

Key Features

High Transmission Ratio: The single-threaded worm gear has a transmission ratio of up to 100:1 or more, making it suitable for scenarios requiring a large reduction ratio.
Compact Structure: Compared to multi-stage gear transmission, the worm gear and worm wheel structure saves more space.
Self-Locking Property: When the helix angle of the worm is small, it can prevent reverse drive and enhance safety.

Technical Specifications

Detailed technical parameters and specifications are provided in the following documentation:

Product Tags:

Worm Gear CNC Rotary Table

Precision Indexing Worm Rotary Table

Precision Engineering CNC Rotary Table

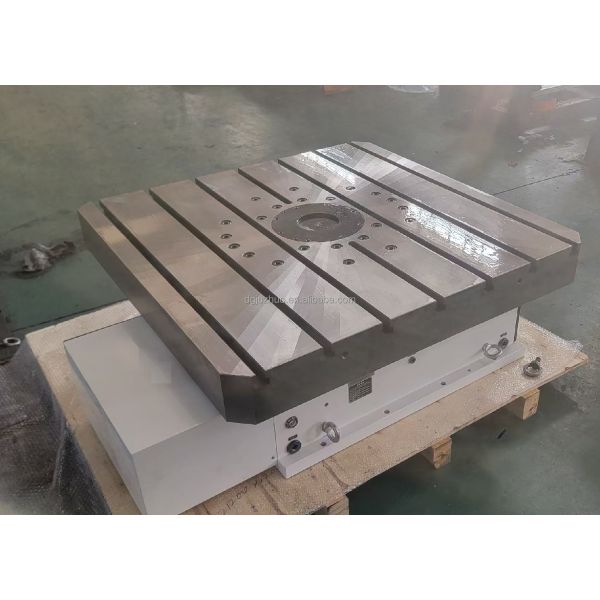

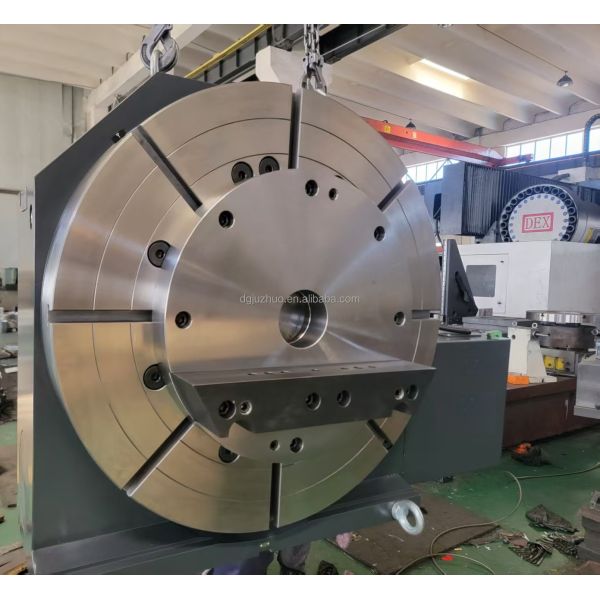

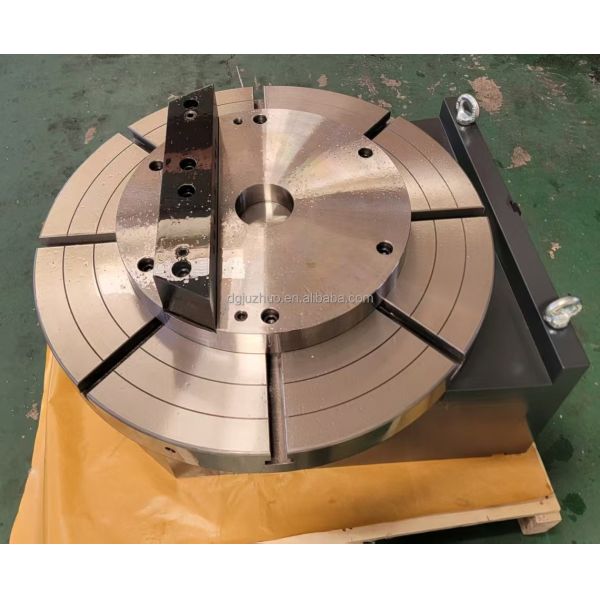

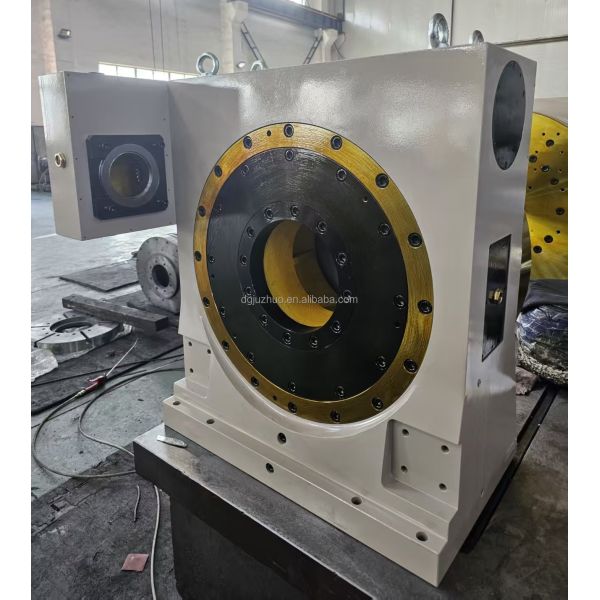

Worm Gear 4 Axis CNC Rotary Table Images
