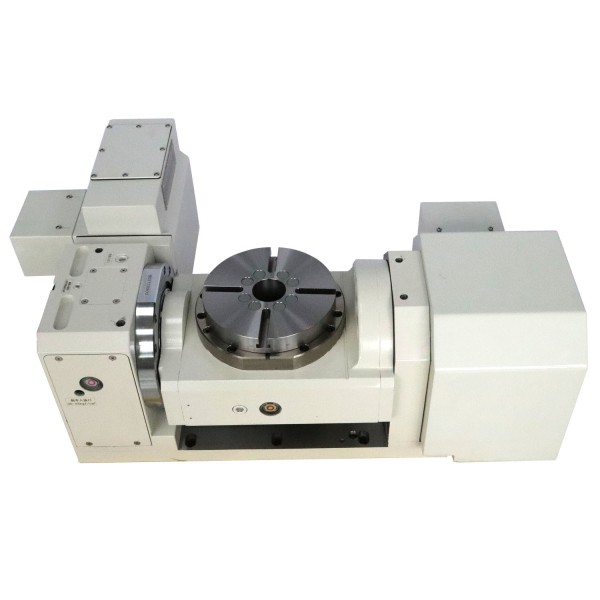

Mitsubishi HF Series Compatible Servo Motor 5th Axis Roller Cam Rotary Table
Product Overview
The 5th Axis Roller Cam Rotary Table is an advanced precision device designed for high-performance machining applications requiring exceptional accuracy and reliability. This Fifth Axis Rotary Table delivers unparalleled precision and smooth operation, making it ideal for complex milling, drilling, and cutting tasks in multi-axis CNC systems.
Key Features
- High precision 5 Axis Roller Cam Unit for enhanced machining accuracy
- Worktable radial runout of ≤0.010 mm ensuring superior concentricity
- Locking method options: pneumatic or hydraulic for versatile operation
- Multiple mounting screw hole sizes available: M6, M8, M10, and M16 mm countersunk holes
- Vertical mounting perpendicularity maintained at ≤0.020 mm for precise alignment
- Total gear reduction ratio ranging from 1:40 to 1:65 for optimal torque and speed control
- Ideal as a Five Axis CNC Rotary Table for complex multi-axis machining tasks
- Reliable 5th Axis Rotary Worktable designed for durability and consistent performance
Technical Specifications
| Parameter |
Specification |
| Worktable Surface Flatness |
≤0.010 mm |
| Drive Mechanism |
Roller Cam |
| Worktable Diameter |
Φ170 ~ Φ500 mm |
| Total Gear Reduction Ratio |
1:40 ~ 1:65 |
| Worktable Radial Runout |
≤0.010 mm |
| Indexing Accuracy |
±20" ~ ±60" Arc-Second |
| Vertical Mounting Perpendicularity |
≤0.020 mm |
| Repeat Positioning Accuracy |
6" ~ 20" Arc-Second |
| Worktable T-Slot Size |
12H7 / 14H7 mm |
| Worktable Center Height (Horizontal Position) |
135 ~ 450 mm |
Applications
The JuZhuo TDNC Series 5th Axis Roller Cam Rotary Table is widely used in various industrial applications requiring meticulous rotational positioning and multi-axis machining. Key industries include:
- Aerospace component manufacturing
- Automotive parts production
- Precision mold making
- Medical device manufacturing
- Complex CNC machining centers
Customization Options
The TDNC Series offers hydraulic brake torque ranging from 1800 to 2500 N*m and worktable diameters from Φ170 to Φ500 mm. With flexible delivery times and negotiable pricing, we can tailor solutions to meet your specific manufacturing requirements.
Support & Services
Our technical support team provides comprehensive assistance with installation, maintenance, and repair procedures. Regular maintenance including lubrication and bearing inspection is recommended to maintain optimal performance and extend service life.
Packaging & Shipping
Each unit is securely packaged in custom-fitted foam within double-walled corrugated cardboard boxes, wrapped in anti-static and moisture-resistant materials. We offer reliable shipping with full tracking and insurance coverage.
Frequently Asked Questions
What brand and model is the 5th Axis Roller Cam Rotary Table?
The product is branded JuZhuo with model number TDNC Series.
Where is the rotary table manufactured?
It is manufactured in Dongguan, China.
What certifications does the product have?
The product holds ISO9001 and CE certifications.
What is the minimum order quantity and packaging?
Minimum order is 1 set, packaged in wooden boxes for safe delivery.
What are the payment terms and delivery time?
Payment via T/T with delivery time scheduled according to customer needs.
